Structured data insights

Structured insights extract data in a predefined JSON schema format, providing consistent, machine-readable results perfect for analytics, dashboards, and downstream processing.

When to use structured insights

Choose structured insights when you need:

Quantitative Metrics - Scores, ratings, counts, percentages.
Categorical Data - Status values, types, priorities, classifications.
Boolean Flags - Yes/no decisions, presence checks, compliance indicators.
Consistent Format - Data that feeds into databases, dashboards, or analytics systems.
Multiple Related Fields - Complex data with multiple attributes.

Use Case	Unstructured	Structured
Open-ended summaries	✅	❌
Sentiment scoring (1-5)	❌	✅
Issue categorization	❌	✅
Descriptive analysis	✅	❌
Compliance flags	❌	✅
Dashboard metrics	❌	✅

Creating a structured insight

Step 1: Start creating an insight

Navigate to AI Insights in the Portal.
Click Create Insight.
Enter a name and basic instructions.

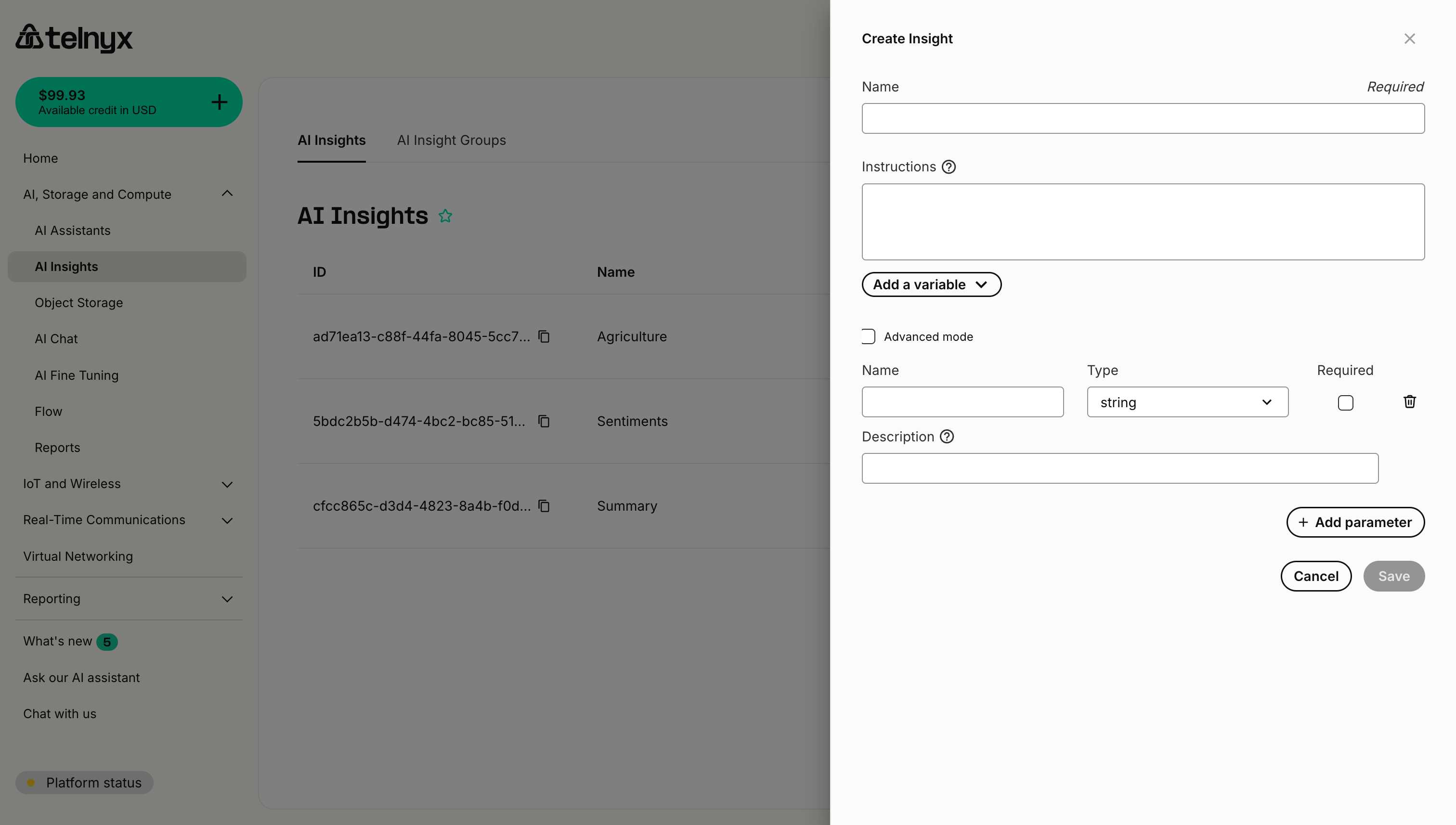

Step 2: Enable structured data mode

Click the Collect as structured data button to reveal the schema configuration interface.

Step 3: Define parameters

For each piece of data you want to extract, add a parameter with:

Name - The field name in the JSON output (e.g., sentiment_score, issue_type).
Type - The data type (string, number, boolean, etc.).
Required - Whether this field must always be present.
Description - Instructions for extracting this specific field.

Click Add parameter to add additional fields to your schema.

Parameter types

String

Text values - use for categories, descriptions, identifiers. Example:

Name: issue_category
Type: string
Description: The primary category of the customer's issue. Must be one of: "billing", "technical", "account", "general"

Output:

{
  "issue_category": "technical"
}

Enum

Predefined categories - use when you have a fixed set of possible values. The AI agent will select one value from your provided list. Example:

Name: sentiment
Type: enum
Enum Values (comma separated): positive, negative, neutral, mixed
Description: Overall sentiment of the customer during the conversation

Output:

{
  "sentiment": "positive"
}

Enums provide better accuracy than asking the AI agent to choose from options in a string description. They enforce strict value validation and make the AI agent’s task clearer.

Number

Numeric values - use for scores, ratings, counts, percentages. Example:

Name: satisfaction_score
Type: number
Description: Customer satisfaction rating from 1-10 based on their tone and statements

Output:

{
  "satisfaction_score": 8
}

Integer

Whole number values - use when you need integers without decimals (counts, quantities, IDs). Example:

Name: message_count
Type: integer
Description: Total number of messages sent by the customer in this conversation

Output:

{
  "message_count": 5
}

Use integer instead of number when you specifically need whole numbers. This provides clearer intent and can help the AI agent avoid returning decimal values.

Boolean

True/false values - use for flags, presence checks, yes/no decisions. Example:

Name: escalation_needed
Type: boolean
Description: True if the conversation requires escalation to a supervisor or specialist

Output:

{
  "escalation_needed": false
}

Array

Lists of values - use for multiple items of the same type. Example:

Name: products_mentioned
Type: array
Description: List of product names or SKUs mentioned during the conversation

Output:

{
  "products_mentioned": ["Widget Pro", "Widget Basic", "Extended Warranty"]
}

Array (string)

Lists of text values - use for multiple string items with enforced type safety. Example:

Name: issue_keywords
Type: array (string)
Description: Key terms or phrases mentioned by the customer that describe their issue

Output:

{
  "issue_keywords": ["billing", "refund", "overcharge"]
}

Array (number)

Lists of numeric values - use for multiple numbers with enforced type safety. Example:

Name: mentioned_prices
Type: array (number)
Description: All price points or dollar amounts mentioned during the conversation

Output:

{
  "mentioned_prices": [29.99, 49.99, 99.99]
}

Array (boolean)

Lists of true/false values - use for multiple boolean flags with enforced type safety. Example:

Name: feature_preferences
Type: array (boolean)
Description: Customer preferences for features in order: email notifications, SMS alerts, push notifications

Output:

{
  "feature_preferences": [true, false, true]
}

Typed arrays (string, number, boolean) provide better type safety than the generic array type. Use them when you know all elements will be of the same specific type.

Object

Nested structures - use for complex related data. Example:

Name: customer_info
Type: object
Description: Extracted customer information including name, account number, and contact preference

Output:

{
  "customer_info": {
    "name": "Jane Smith",
    "account_number": "ACC-12345",
    "preferred_contact": "email"
  }
}

Complete examples

Example 1: Sentiment analysis

Configuration:

Name: Customer Sentiment Analysis

Instructions: Analyze the customer's emotional state throughout the conversation.

Parameters:
1. positivity_score
   - Type: number
   - Required: Yes
   - Description: Rate positive sentiment from 1-5 (1=very negative, 5=very positive)

2. frustration_level
   - Type: number
   - Required: Yes
   - Description: Rate customer frustration from 1-5 (1=not frustrated, 5=very frustrated)

3. overall_sentiment
   - Type: string
   - Required: Yes
   - Description: Overall sentiment classification: "positive", "neutral", or "negative"

4. key_emotions
   - Type: array
   - Required: No
   - Description: List of specific emotions detected (e.g., "happy", "confused", "angry", "satisfied")

Sample Output:

{
  "positivity_score": 4,
  "frustration_level": 2,
  "overall_sentiment": "positive",
  "key_emotions": ["satisfied", "relieved", "appreciative"]
}

Example 2: Sales qualification

Configuration:

Name: Lead Qualification

Instructions: Assess the sales opportunity from this conversation.

Parameters:
1. budget_mentioned
   - Type: boolean
   - Required: Yes
   - Description: Did the prospect mention or discuss budget?

2. budget_range
   - Type: string
   - Required: No
   - Description: If mentioned, what budget range? (e.g., "under $1000", "$1000-$5000", "over $5000")

3. decision_timeframe
   - Type: string
   - Required: Yes
   - Description: When do they need to make a decision? ("immediate", "this_month", "this_quarter", "exploring", "unknown")

4. pain_points
   - Type: array
   - Required: Yes
   - Description: List of specific problems or needs mentioned

5. competitor_mentions
   - Type: array
   - Required: No
   - Description: Names of competing solutions mentioned

6. lead_score
   - Type: number
   - Required: Yes
   - Description: Qualification score from 1-10 based on buying signals

Sample Output:

{
  "budget_mentioned": true,
  "budget_range": "$1000-$5000",
  "decision_timeframe": "this_month",
  "pain_points": [
    "Manual data entry taking too long",
    "Errors in current system",
    "No mobile access"
  ],
  "competitor_mentions": ["CompetitorX", "LegacyTool"],
  "lead_score": 8
}

Example 3: Support ticket categorization

Configuration:

Name: Support Ticket Classification

Instructions: Categorize and triage the support request.

Parameters:
1. issue_type
   - Type: string
   - Required: Yes
   - Description: Primary issue type: "technical", "billing", "account", "feature_request", "bug_report"

2. priority
   - Type: string
   - Required: Yes
   - Description: Urgency level: "critical", "high", "medium", "low"

3. affected_service
   - Type: string
   - Required: No
   - Description: Which product/service is affected?

4. resolved
   - Type: boolean
   - Required: Yes
   - Description: Was the issue resolved during this conversation?

5. resolution_time_minutes
   - Type: number
   - Required: No
   - Description: If resolved, how many minutes did it take?

6. follow_up_needed
   - Type: boolean
   - Required: Yes
   - Description: Does this require follow-up action?

7. tags
   - Type: array
   - Required: No
   - Description: Relevant tags for categorization (e.g., "password_reset", "billing_dispute", "api_error")

Sample Output:

{
  "issue_type": "technical",
  "priority": "high",
  "affected_service": "API Integration",
  "resolved": true,
  "resolution_time_minutes": 12,
  "follow_up_needed": false,
  "tags": ["api_error", "authentication", "resolved"]
}

Advanced mode

Enable Advanced mode (checkbox at the top of the structured data section) to access additional schema configuration options:

Custom validation rules.
Enum constraints for string values.
Min/max constraints for numbers.
Pattern matching for strings.
Nested object definitions.

Best practices

1. Keep schemas focused

Don’t try to extract everything in one insight. Create multiple focused insights instead:

✅ Separate insights for “Sentiment” and “Issue Classification”
❌ One massive insight trying to capture sentiment, classification, entities, summary, etc.

2. Make instructions clear

Each parameter’s description should be crystal clear:

❌ Bad: "sentiment score"
✅ Good: "Rate overall sentiment from 1-10, where 1 is very negative, 5 is neutral, and 10 is very positive"

3. Use enums for categories

When you have a fixed set of categories, use the enum type instead of listing values in a string description: ❌ Less effective (using string with description):

Type: string
Description: Classification must be one of: "billing_question", "technical_support", "feature_request", "complaint", "general_inquiry"

✅ Better (using enum type):

Type: enum
Enum Values (comma separated): billing_question, technical_support, feature_request, complaint, general_inquiry
Description: The primary classification of the customer inquiry

Using the enum type provides better accuracy and enforces strict value validation. See the Enum parameter type section for more details.

4. Mark optional appropriately

Only mark fields as required if they should always be extractable:

Required: overall_sentiment - should always be detectable
Optional: competitor_mentioned - may not come up in every conversation

5. Provide value ranges

For numeric fields, specify the range:

Description: Urgency score from 1-5, where 1 is low priority and 5 is critical/urgent

6. Test with edge cases

Test your structured insights with:

Very short conversations.
Conversations where some information is missing.
Ambiguous or unclear discussions.
Multiple topics in one conversation.

Next steps

Create Insight Groups - Organize your structured insights.
Explore Use Cases - Industry-specific structured insight examples.

Creating Insights - Basic insight creation.
Insight Groups - Organizing insights.
API Reference - Programmatic access to insights.
