Cradlepoint IBR200 Cellular Router Setup Guide

The compact, semi-ruggedized IBR200 LTE router is designed for secure, cloud-managed IoT networking. The IBR200 enables use of low-cost M2M/IoT data plans via the Telnyx Wireless SIM, and with NetCloud Perimeter, addresses the biggest gap in IoT: security. It comes with NetCloud Perimeter and advanced security for PCI-compliant networking of vulnerable IoT devices.

This guide will walk you through how to set up the CradlePoint IBR200 cellular router with a Telnyx SIM Card.

Prerequisites to complete the Cradlepoint IBR200 Cellular Router setup​

  1. A Telnyx Portal account and active Telnyx SIM card with data plan. Check out this Quickstart Guide to get set up.
  2. The Cradlepoint IBR200 device (as shown below).
  3. A Netcloud Essentials Cloud subscription is required for full functionality of this Cradlepoint modem. Without this, many of its features will be disabled. This guide, however, will walk you through basic connectivity which does NOT require the subscription.

Cradlepoint IBR200

Alright, let's get started!

Instructions for setting up your Cradlepoint IBR200 Cellular Router:​

  1. First, insert the Telnyx SIM card into your Cradlepoint device. The device only accepts the standard SIM card (the largest size from your Telnyx SIM card kit).

  2. Power on the device by connecting the device to its charging adapter.

  3. Open up your preferred web browser and navigate to 192.168.0.1. This is the router's default gateway. You'll be prompted to log into the device. The default credentials are:

    • Username: admin
    • Password: the serial number located on the label at the bottom of the device.

    Cradlepoint1

  4. Click on "Connection Manager" tab.

    Cradlepoint IBR200 Cellular Router

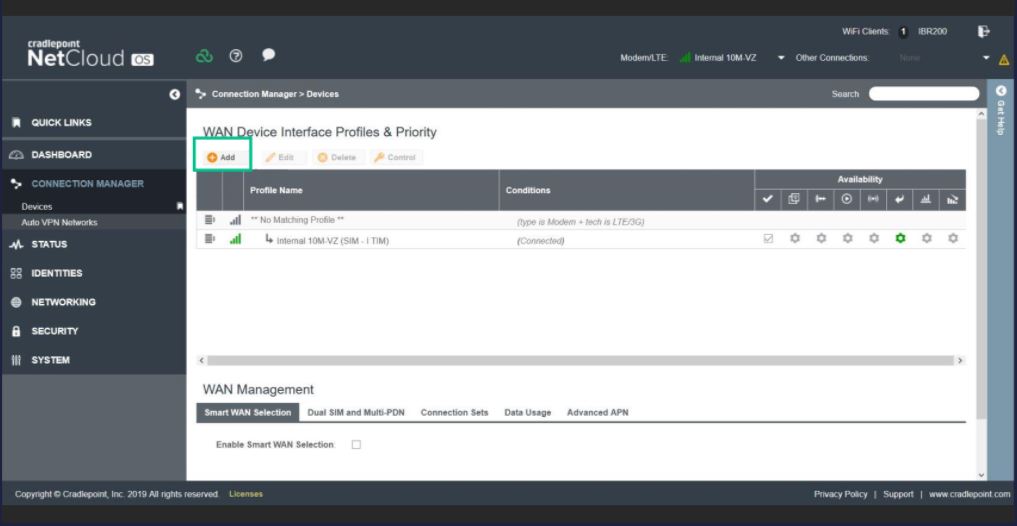

  5. Click "Add".

Configuring your Cradlepoint IBR200 Cellular Router

  1. In this step you'll specify the WAN Interface Profile. Configure the profile as shown below:

    • Profile name: Telnyx SIM
    • Type: Modem
    • Leave everything else unchecked

    Cradlepoint4

  2. On the next page, click on "SIM/APN/Auth". In this step, you'll specify the APN to use with the Telnyx SIM Card. Configure the items as shown below:

    • SIM Card Lock: No Pin Required
    • Access Point Name (APN): Default Override
    • data00.telnyx

    Cradlepoint6

  3. Once you hit "Save" it'll take a few minutes for your device to receive connection. You can verify connectivity by heading to "Connection Manager" tab.

CradlePoint IBR200 cellular router setup

The Telnyx SIM has access to all network types and many different operators. As a result, it can take them a while to attach to a network for the first time. Once it connects to a network, that network will be added to the list of priority operators so as to ensure a fast connection going forward. Please note that the first attach can take up to 30 minutes.

That's it! Your CradlePoint IBR200 cellular router is all set up with a Telnyx SIM card.
