Architecture

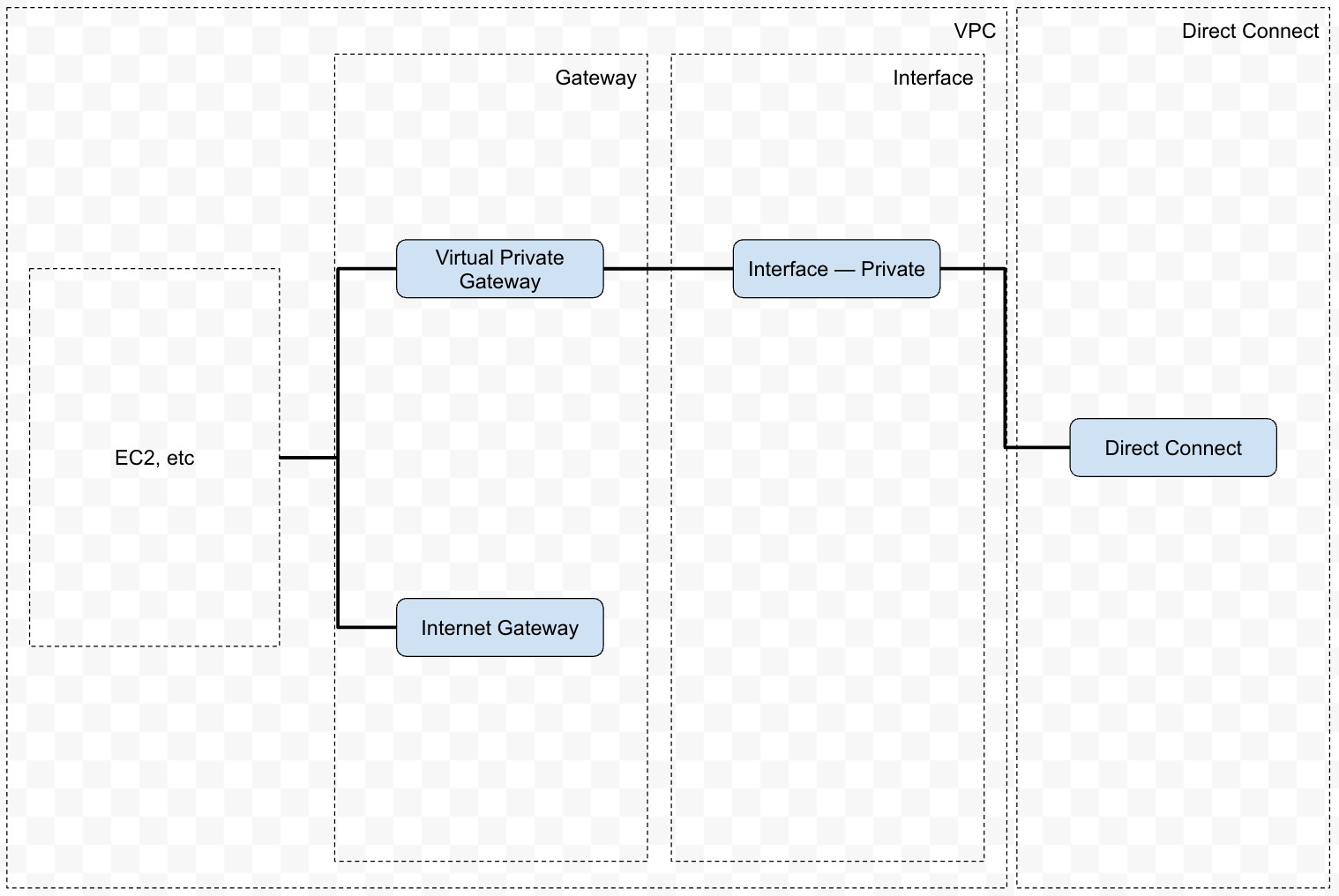

We will construct the following architecture: AWS Architecture

​
Prerequisites

​
VPC

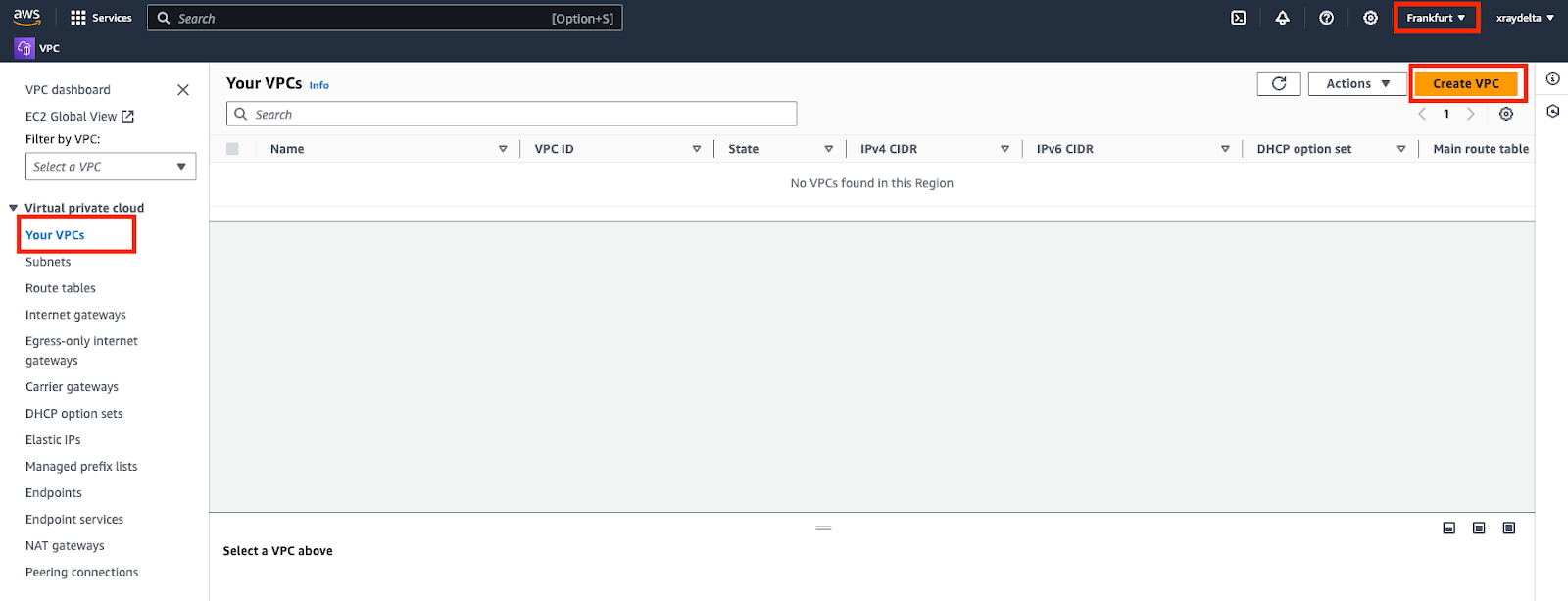

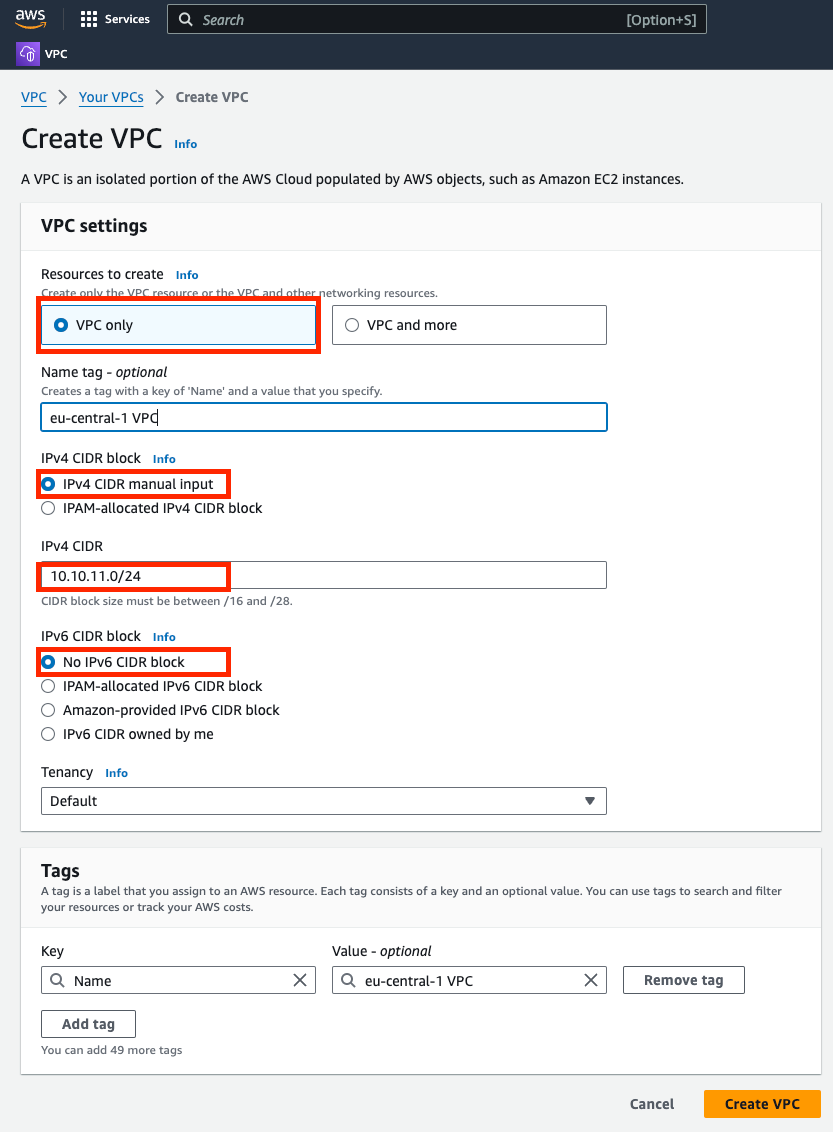

This step is performed on AWS. AWS VPC ⚠️ Note: Ensure the intended region is selected. In this example, we are using eu-central-1 as the region. AWS Create VPC
ParameterValue
Resources to createVPC only
IPv4 CIDR blockIPv4 CIDR manual input
IPv4 CIDRRFC1918, e.g. 10.10.11.0/24
IPv6 CIDR blockNo IPv6 CIDR block
TenancyDefault

​
Virtual Private Gateway

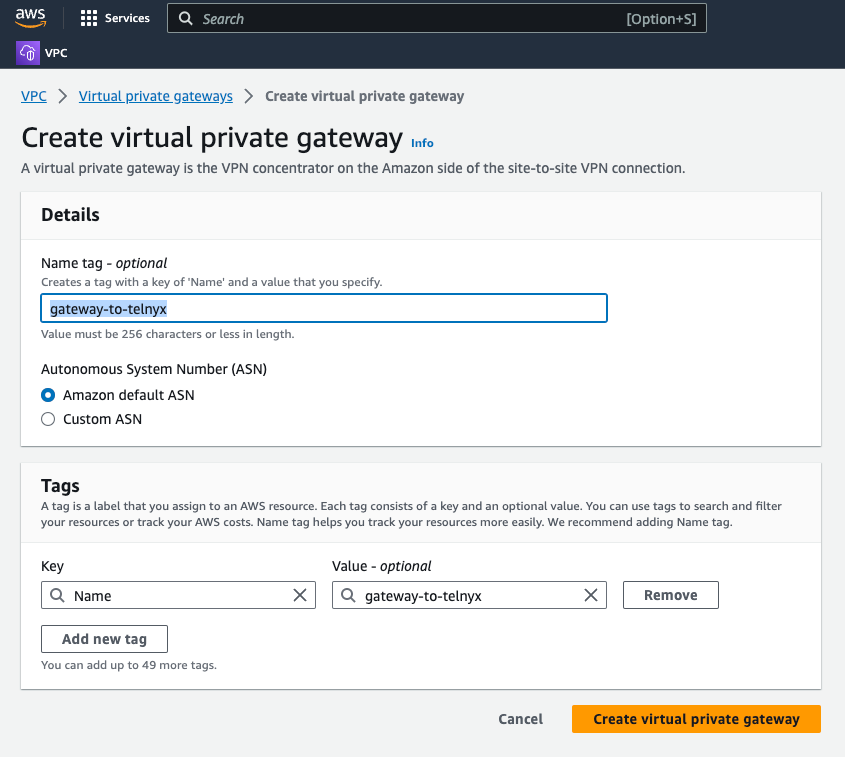

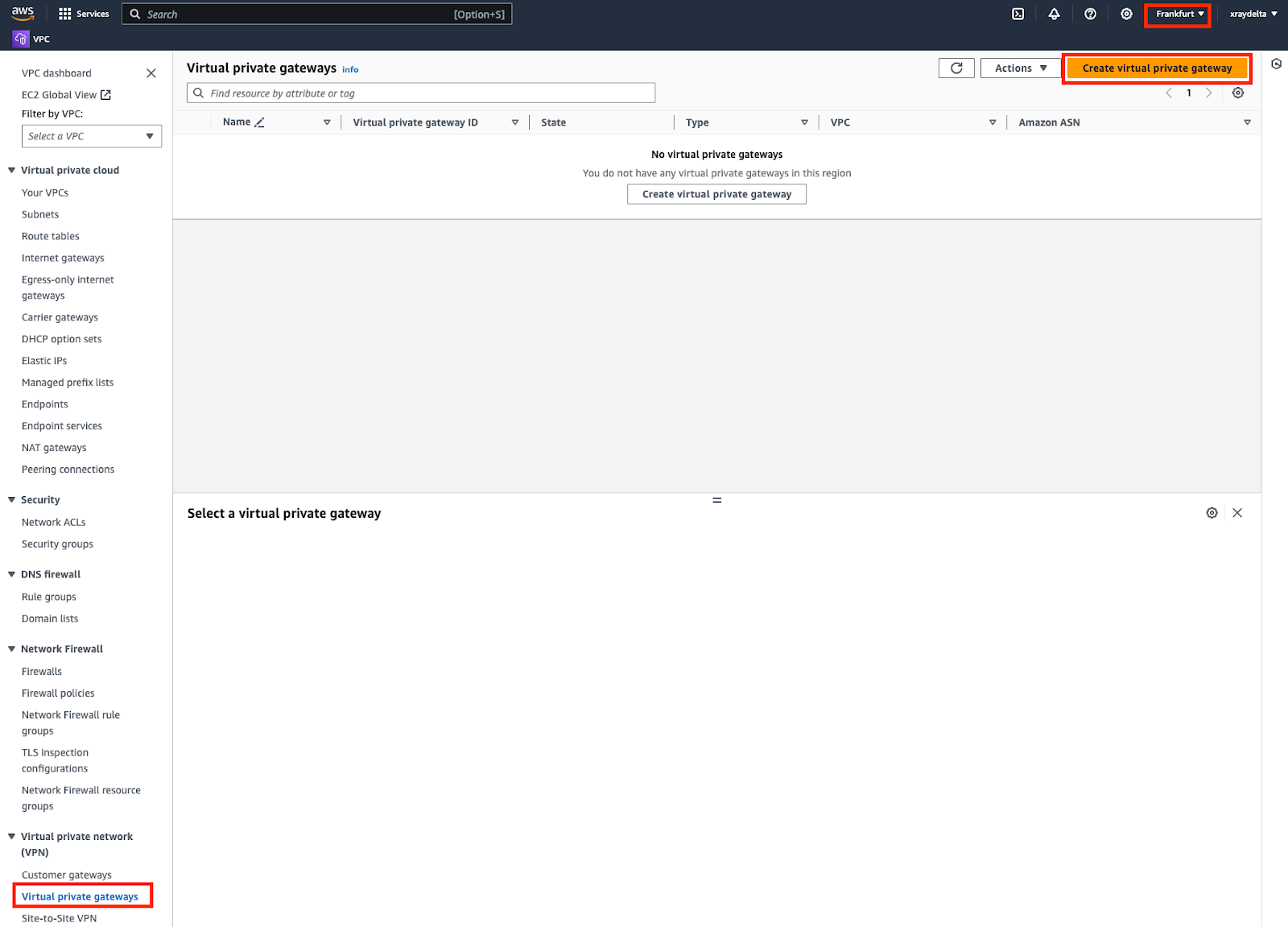

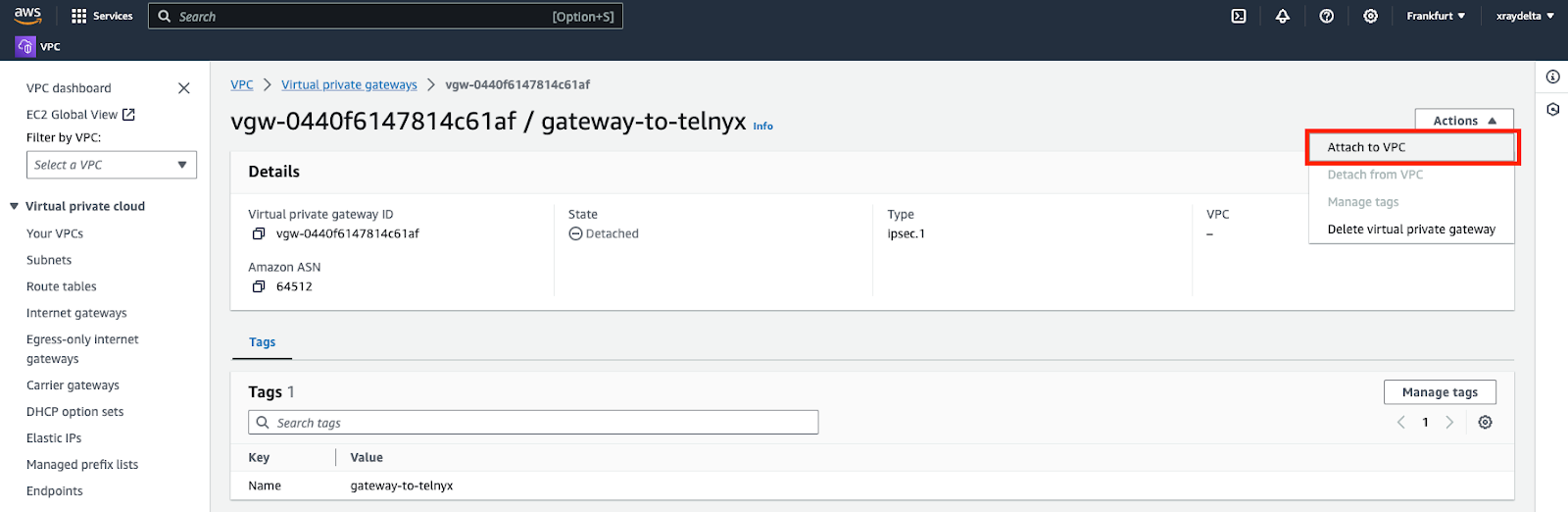

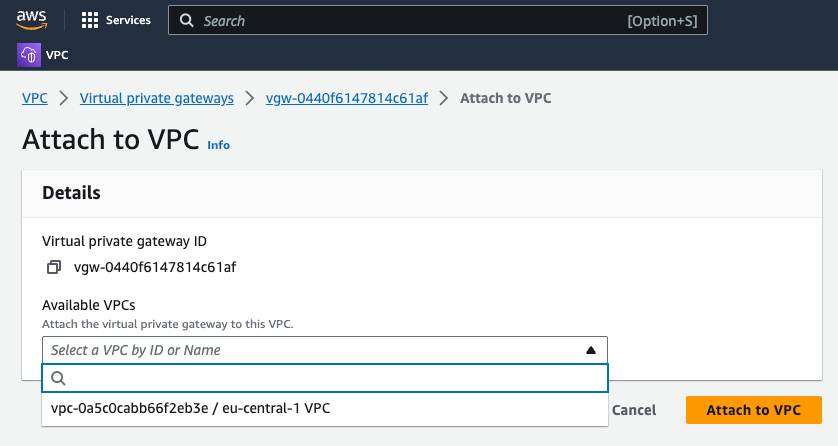

This step is performed on AWS. Create and attach a virtual private gateway to the VPC created. AWS Virtual Private Gateway ⚠️ Note: Ensure the intended region is selected. In this example, we are using eu-central-1 as the region. AWS Create Virtual Private Gateway ⚠️ Note: Amazon default ASN value is 64512. You will need this value for VXC creation. Next, attach the virtual private gateway to the VPC created in the first step. AWS Attach Virtual Private Gateway AWS Attach Virtual Private Gateway 2 The state of the virtual private gateway will go from “Detached” to “Attaching” and finally “Attached”.

​
VPC Route Table

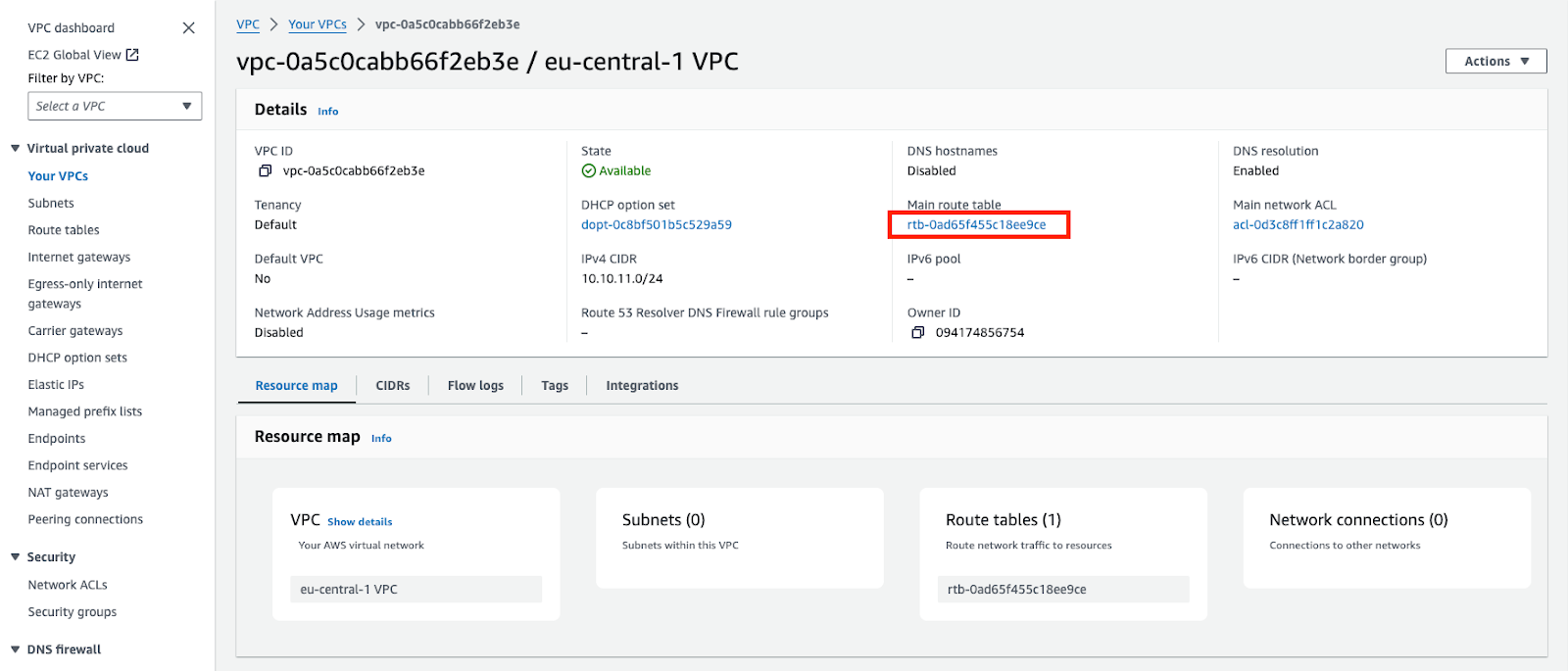

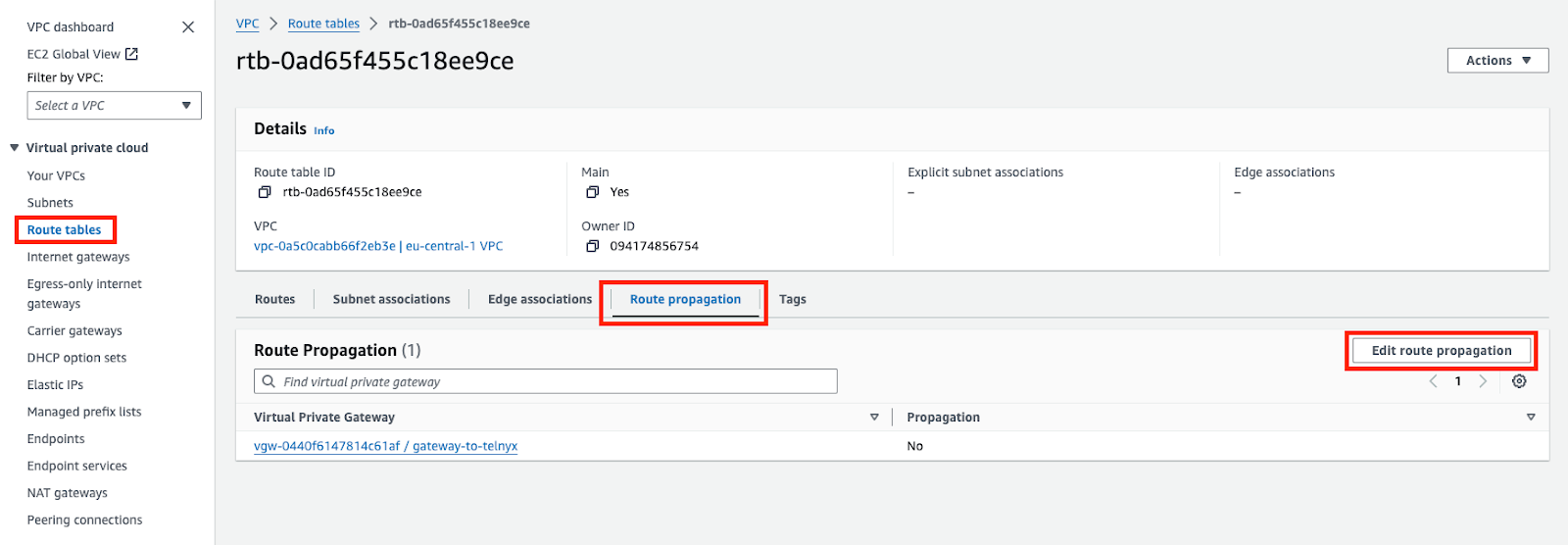

This step is performed on AWS. AWS VPC Route Table 1 AWS VPC Route Table 2 AWS VPC Route Table 3

​
Internet Gateway

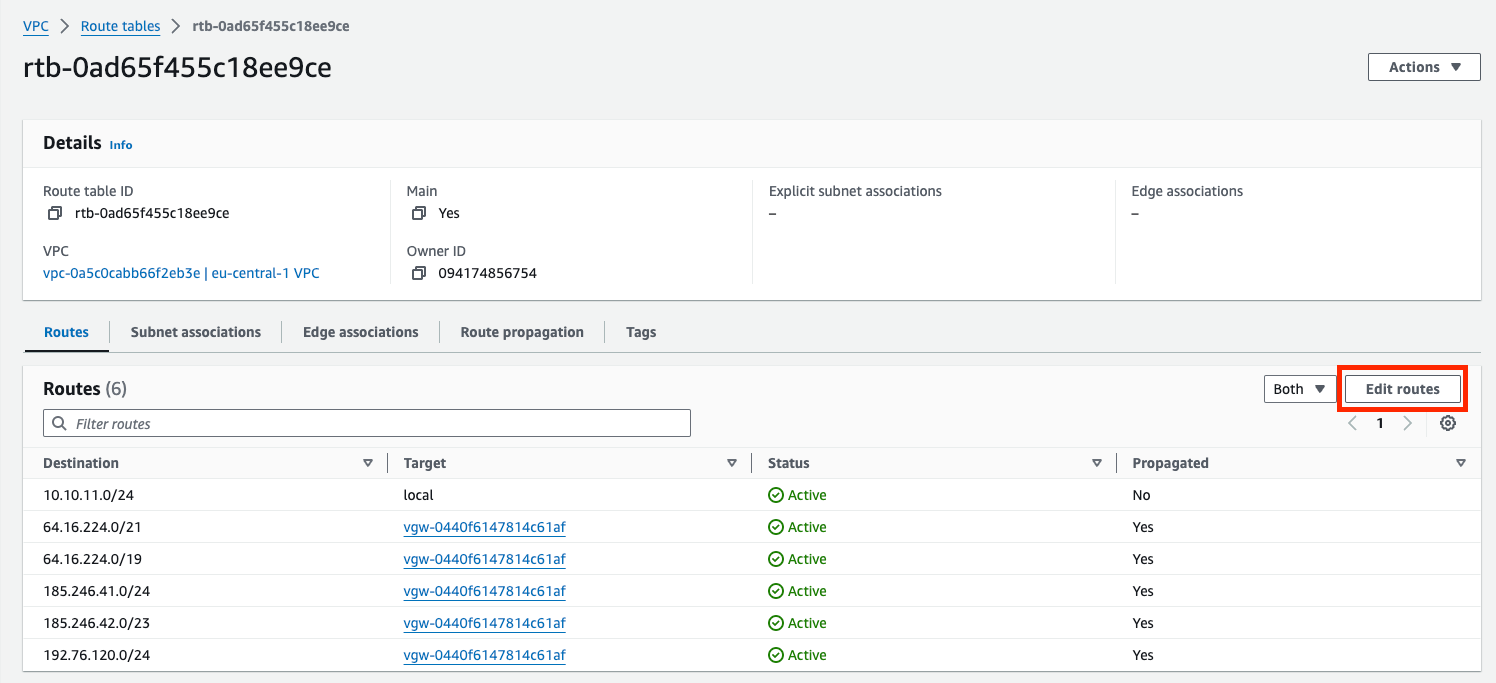

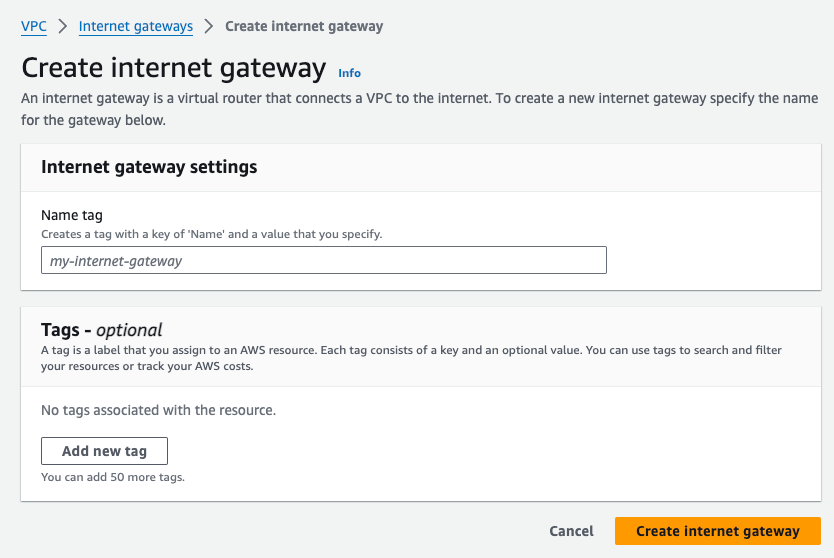

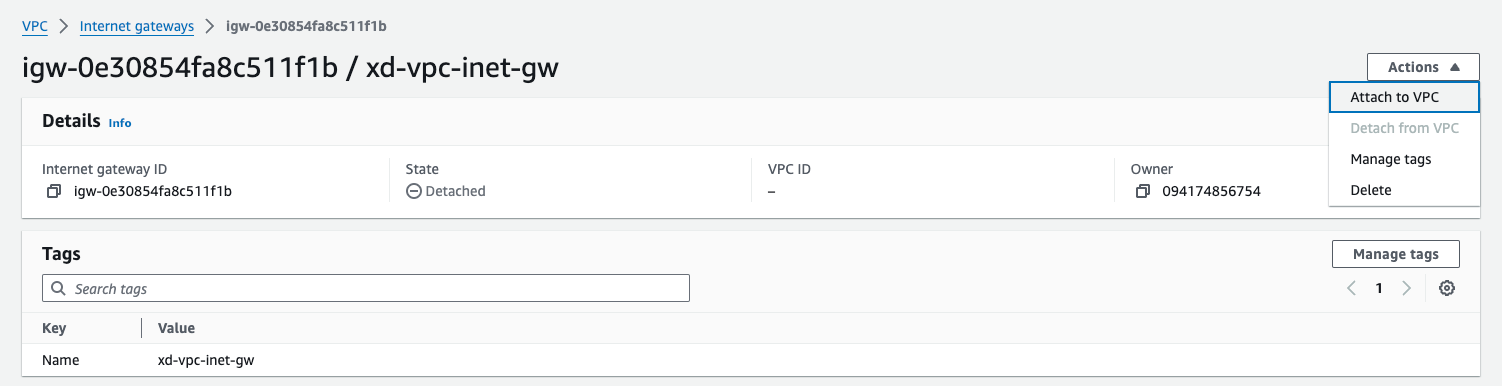

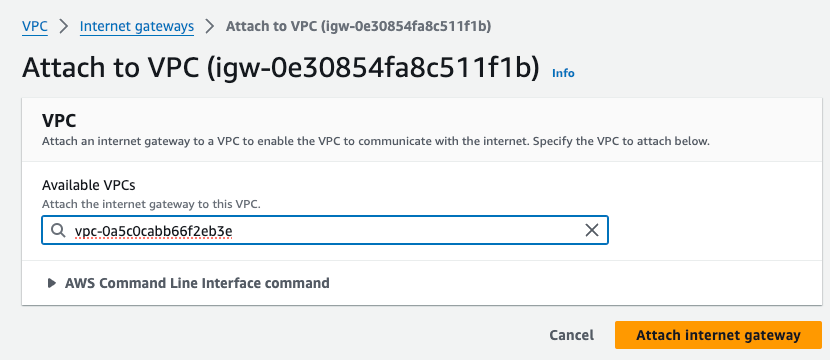

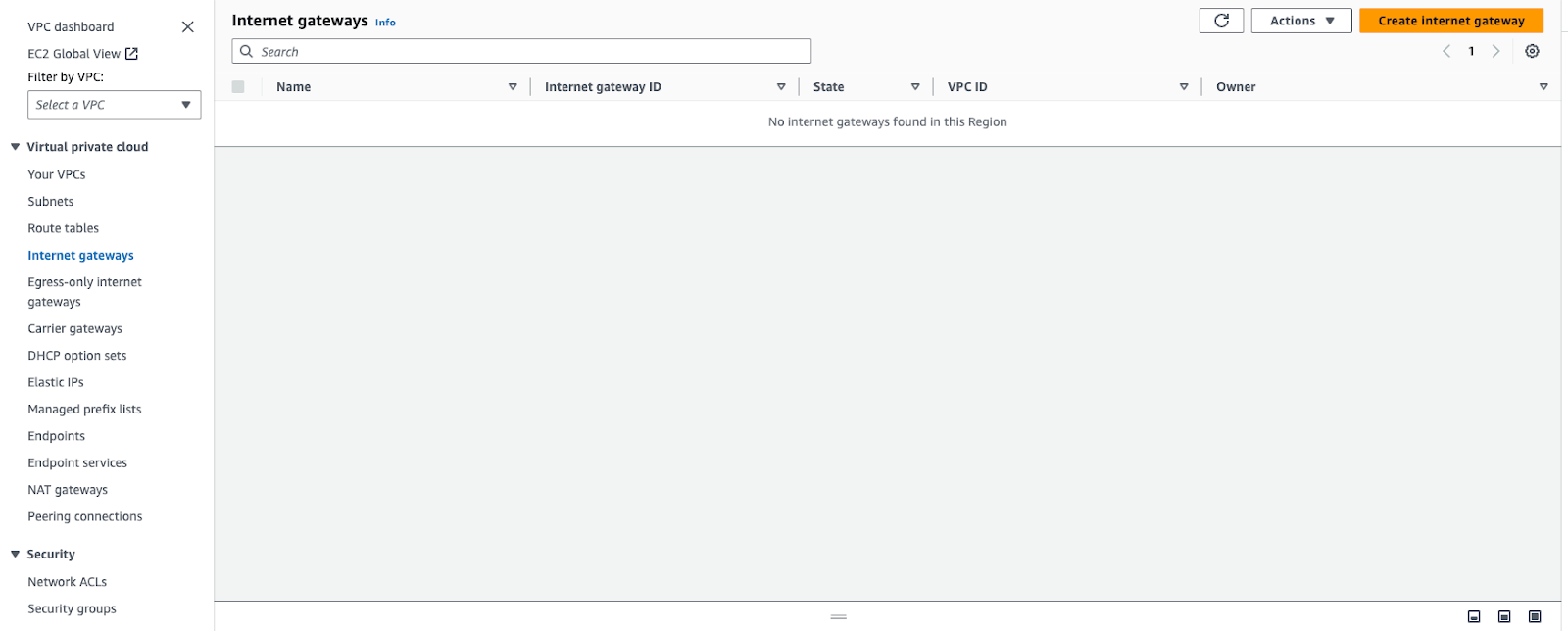

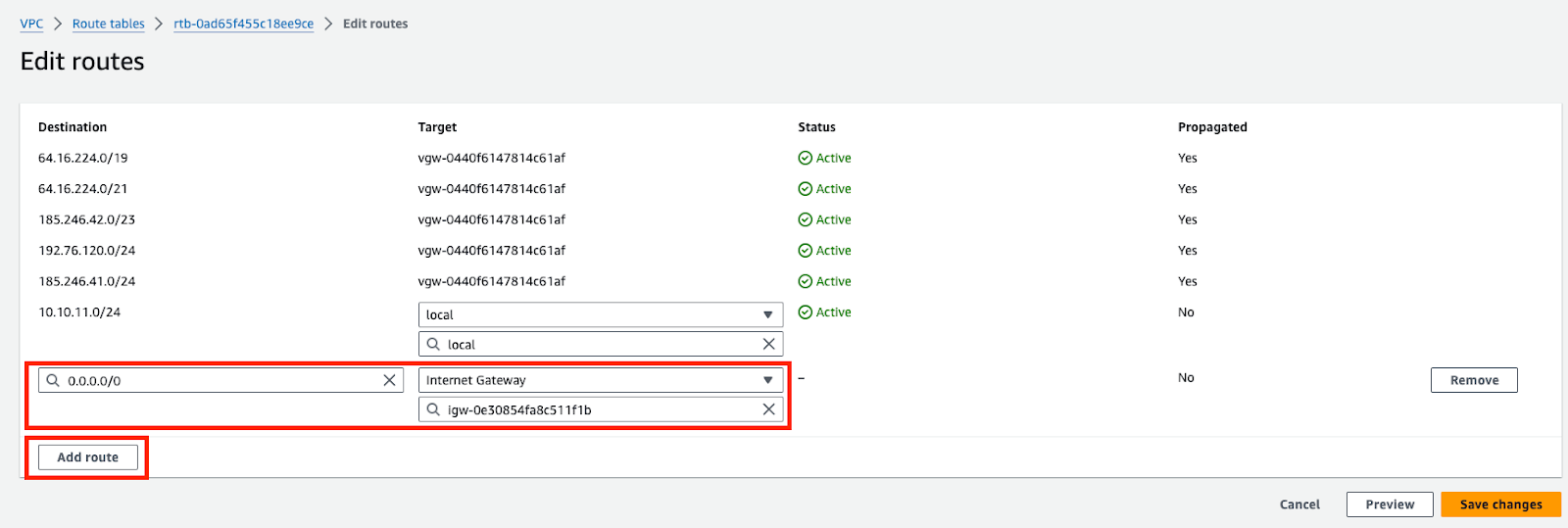

This step is performed on AWS. This is optional. Create and attach an internet gateway to the VPC created. AWS Internet Gateway 1 AWS Internet Gateway 2 AWS Internet Gateway 3 AWS Internet Gateway 4 AWS Internet Gateway 5 AWS Internet Gateway 6

​
Subnet

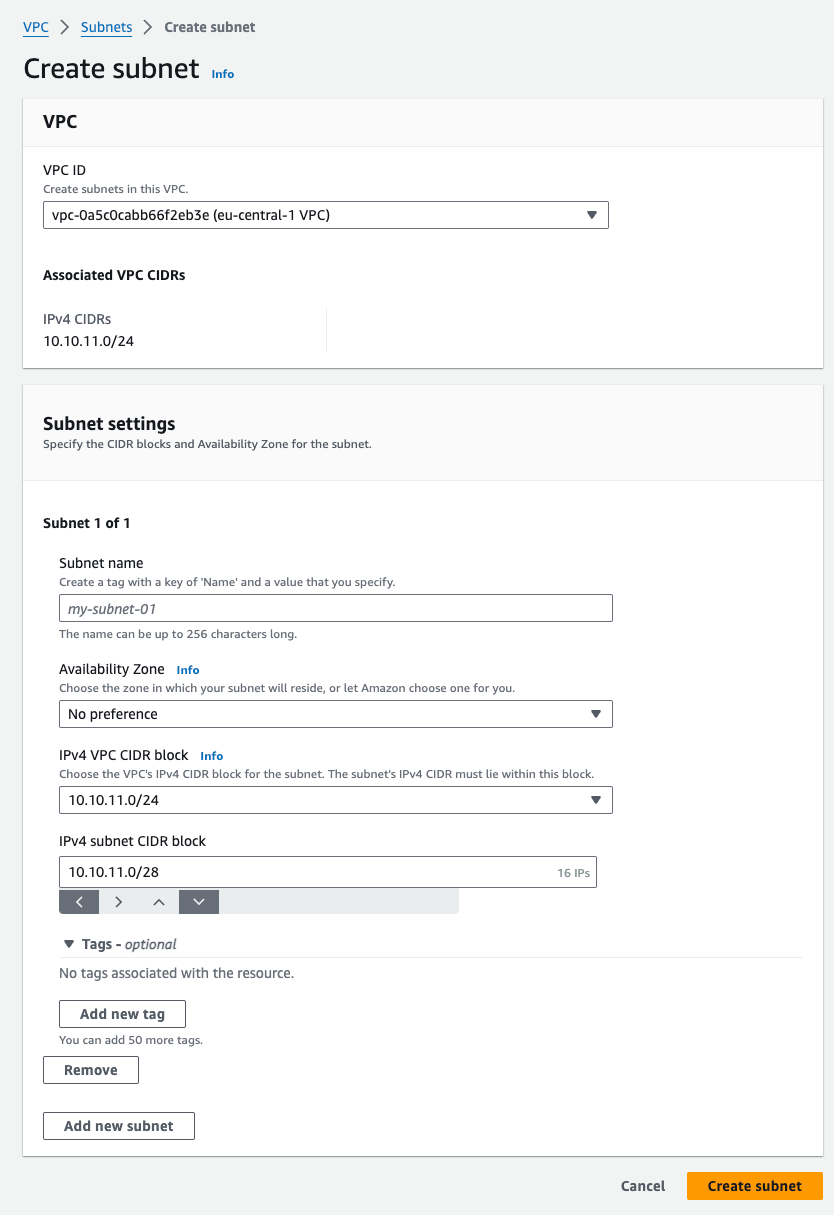

This step is performed on AWS. Assuming you don’t have a subnet setup — Choose the VPC created. Subnet CIDR block should be chosen from within the VPC block. AWS Subnet

​
EC2

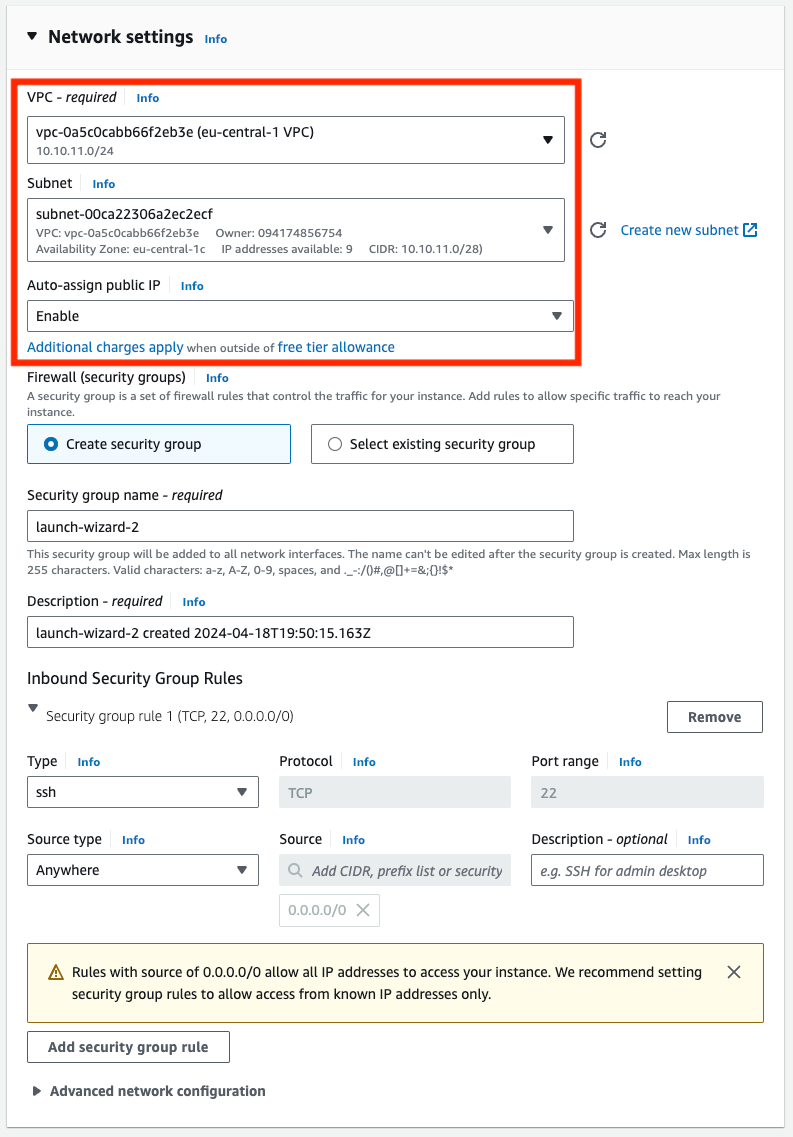

This step is performed on AWS. Assuming you don’t have an EC2 instance — spin one up in the same region. Assign the VPC and Subnet created previously. Enable public IP on the instance so you can ssh into it. AWS EC2

​
Account ID

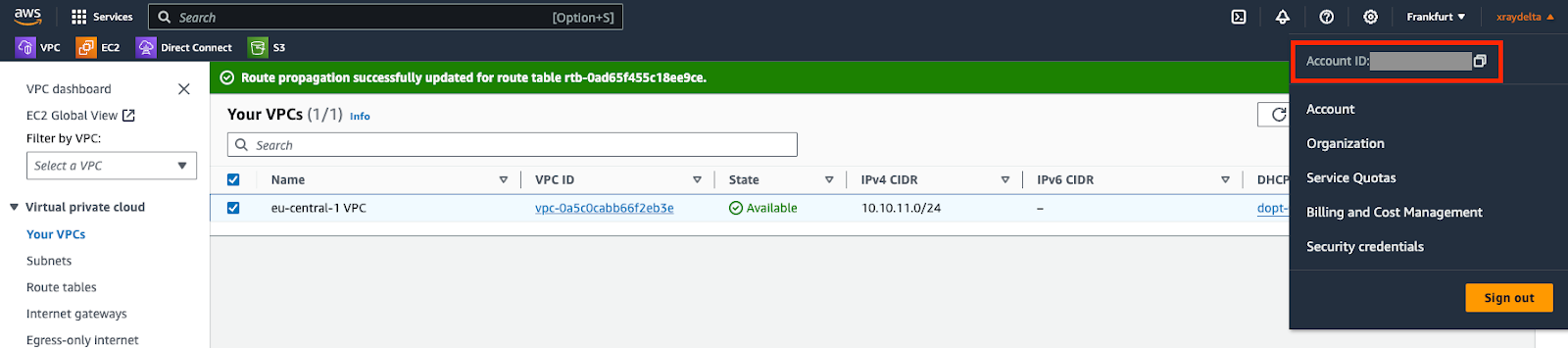

This step is performed on AWS. ⚠️ You would need this number when you create the Telnyx VXC later. AWS Account ID

​
Telnyx Network

This step is performed on Telnyx. If you don’t have a network created already, you may follow this guide to create one.

​
Procedure

​
Create a VXC resource

This step is performed on Telnyx.
request
POST /v2/virtual_cross_connects HTTP/1.1
Host: api.telnyx.com
Content-Type: application/json
Authorization: Bearer XXX
Content-Length: 286

{
    "network_id": "314ae4ed-04f0-4111-be40-240beb7fdcf0",
    "name": "xd-frankfurt-vxc-aws",
    "cloud_provider": "aws",
    "cloud_provider_region": "eu-central-1",
    "primary_cloud_account_id": "YYY",
    "bgp_asn": 64512,
    "bandwidth_mbps": 50
}
ParameterValue
cloud_provideraws
cloud_provider_regionMatch what you selected on the AWS
primary_cloud_account_idAWS account ID from the last step
bgp_asnAWS’s bgp asn which is 64512
bandwidth_mbpsChosen from available bandwidth of the VXC coverage API
Take note of the VXC id returned in the response.

​
Direct Connect

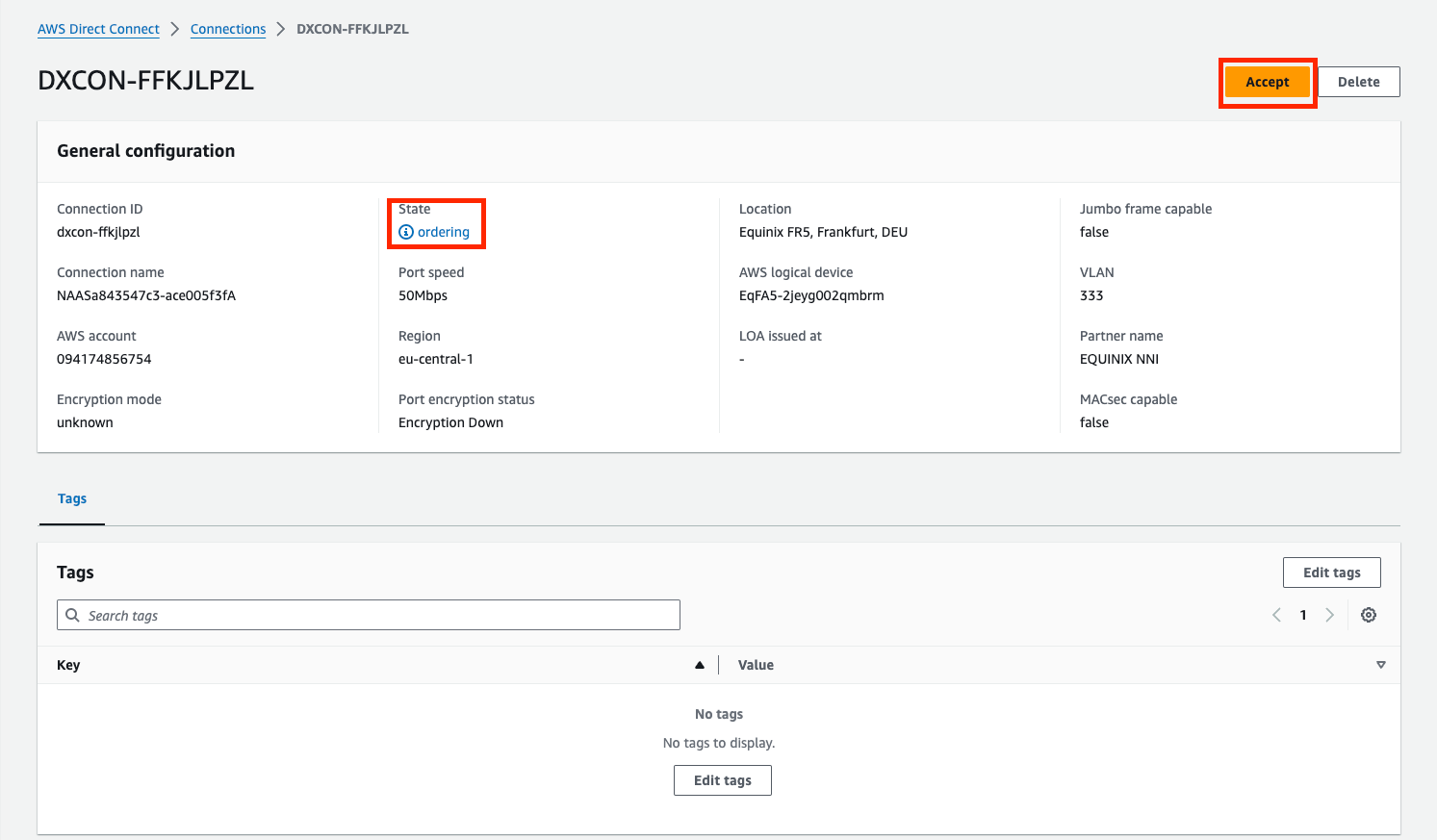

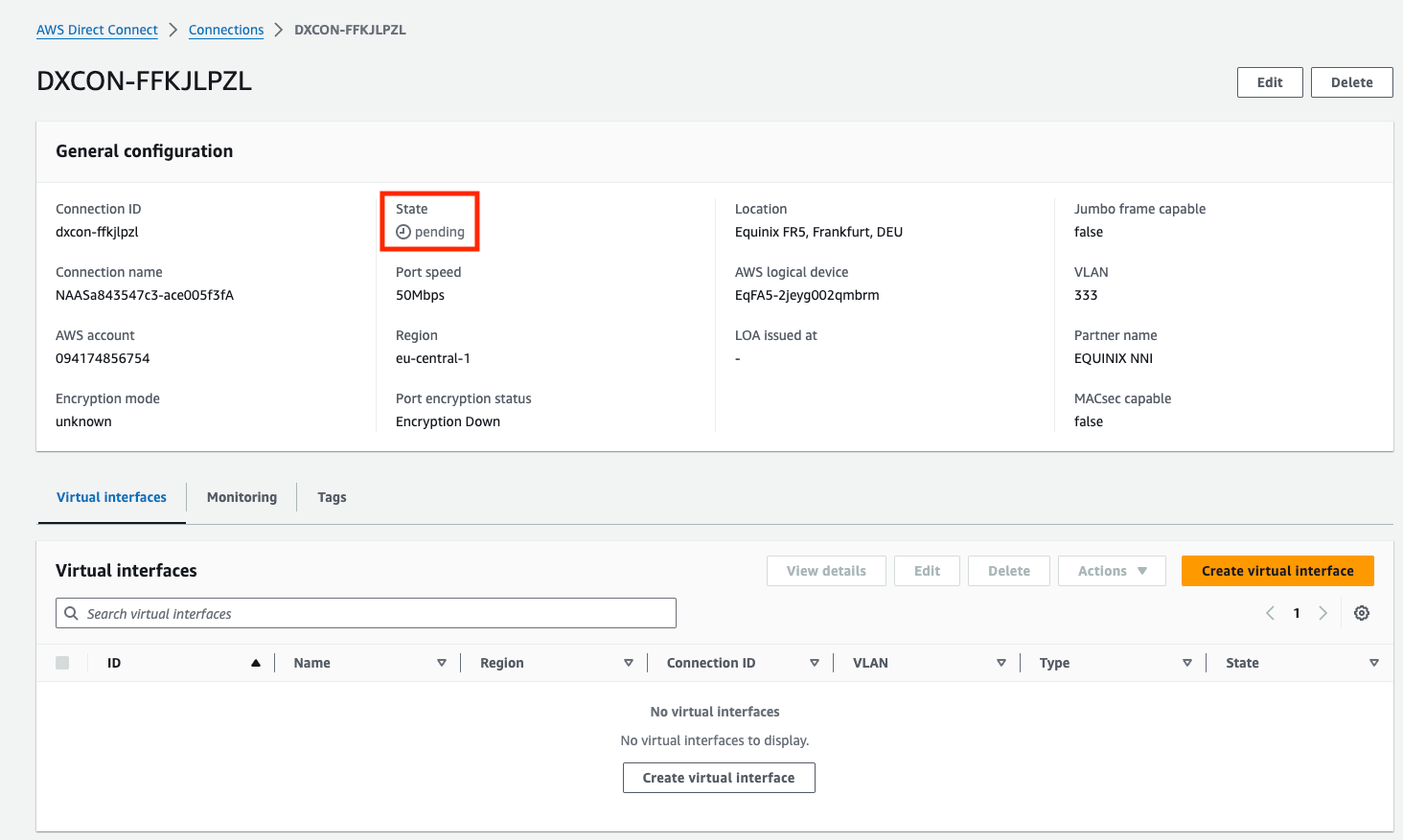

This step is performed on AWS. If you haven’t accepted the connection from your AWS account within 1 hour of the VXC creation, the VXC would be deleted and you will have to start over. AWS Direct Connect AWS Direct Connect 2

​
Enable Primary Connection

This step is performed on Telnyx. The connection must be enabled to be used.
request
PATCH /v2/virtual_cross_connects/:vxc_uuid HTTP/1.1
Host: api.telnyx.com
Content-Type: application/json
Authorization: Bearer XXX
Content-Length: 31

{
    "primary_enabled": true
}

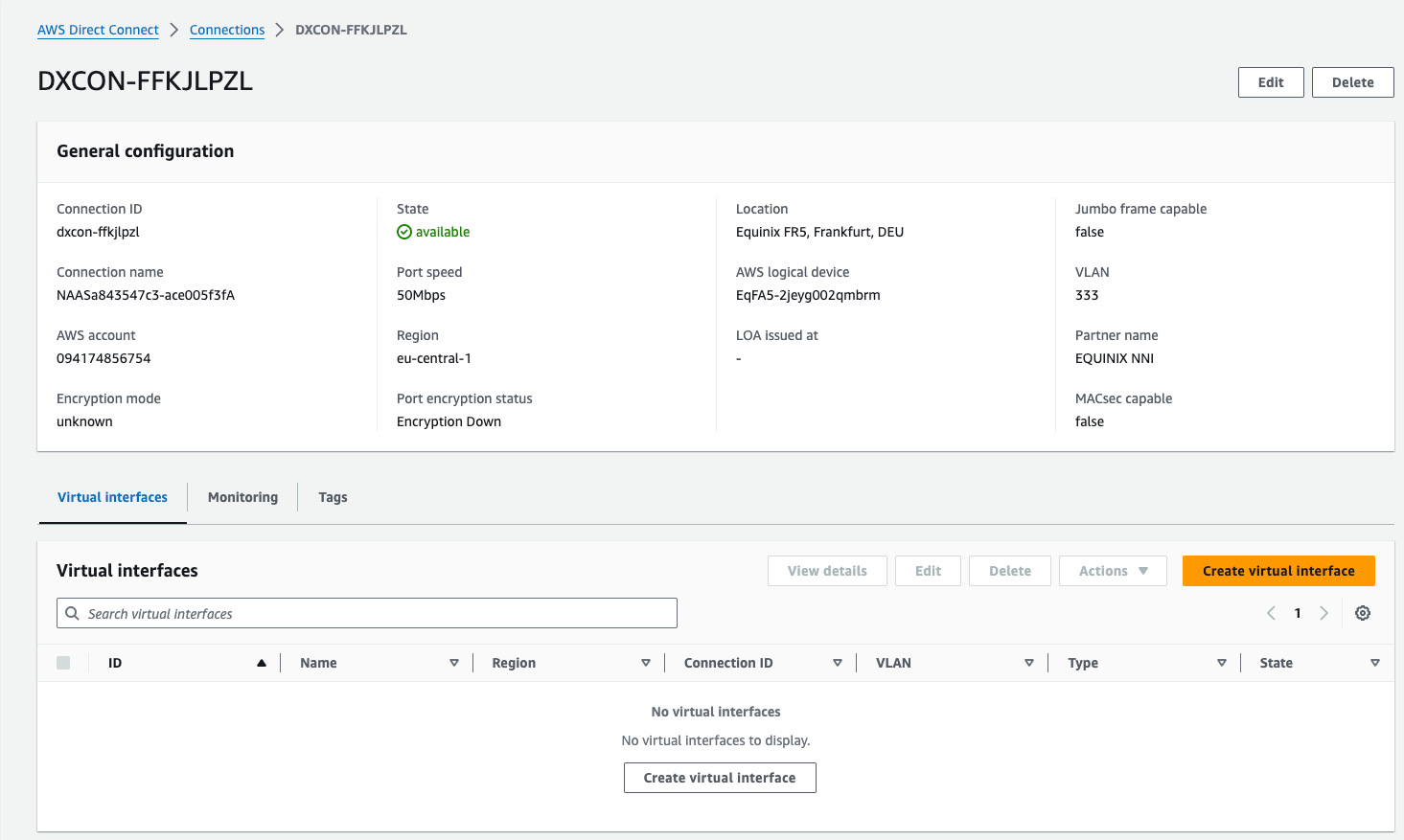

At this point, the connection on AWS will show as “available”. AWS Enable Primary Connection

​
Virtual Interface

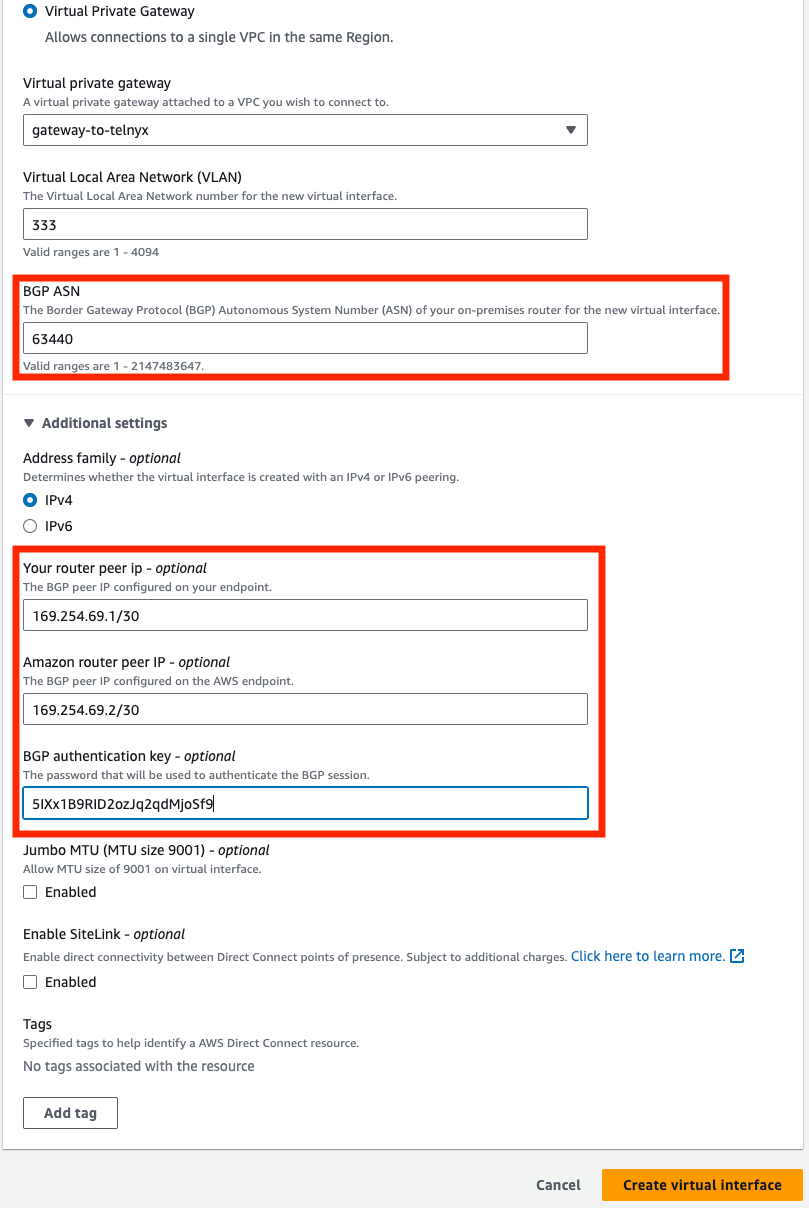

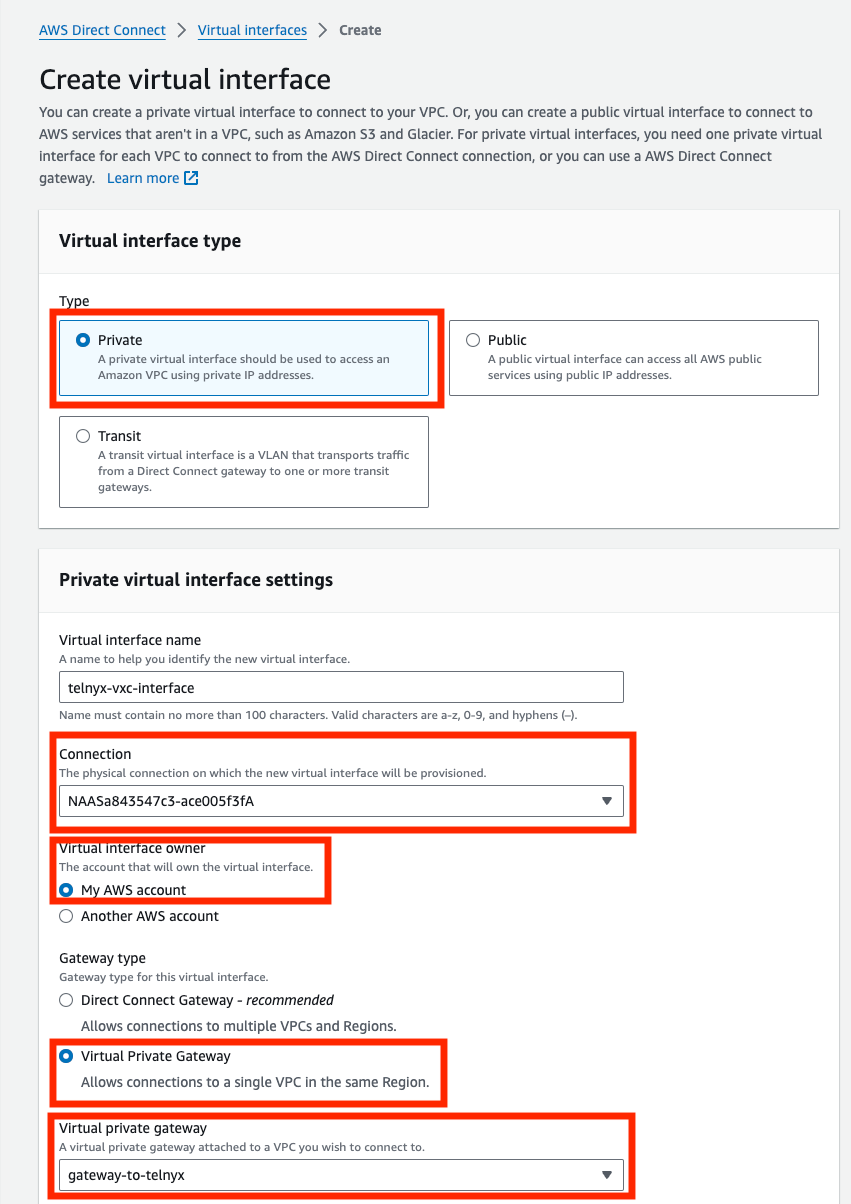

This step is performed on AWS. The connection created above needs to have an interface to which to connect. AWS Virtual Interface 1 AWS Virtual Interface 2 Interface Parameters
ParameterValue
TypePrivate
ConnectionChoose the Direct Connection you accepted previously.
Virtual interface ownerMy AWS account
Gateway TypeVirtual Private Gateway and select the one you created in Prerequisite – AWS → Virtual Private Gateway
BGP ASN63440 - Telnyx ASN
Your router peer IP - optionalprimary_telnyx_ip
Amazon router peer IP - optionalprimary_cloud_ip
BGP authentication key - optionalprimary_bgp_key
Lastly you should see the following – the interface is “available”. AWS Interface Parameters

​
Validate Connection

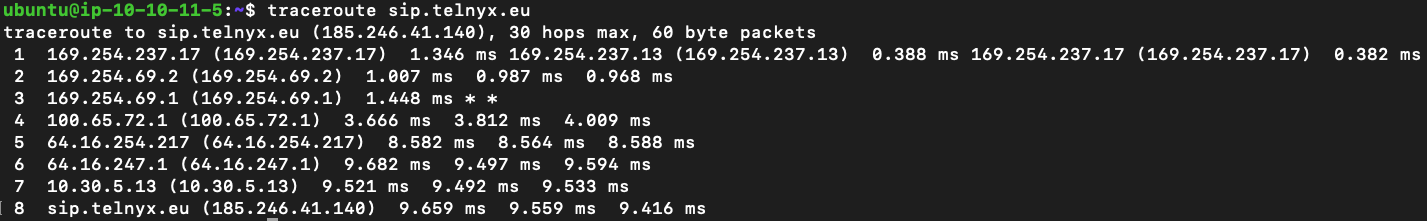

This step is performed on AWS. ssh into your EC2 instance and either ping or traceroute to one of the IP in the route table of the VPC. You can see the route went over the VXC instead of the public internet. AWS Validate Connection
